Rotary Barrel Type Machine
Airless
ISO 9001:2015 Factory Direct Lifetime Support

Rotary Barrel Type Machine

4.5 — Trusted by industrial buyers
Indicative price range 4Lakh - 20Lakh

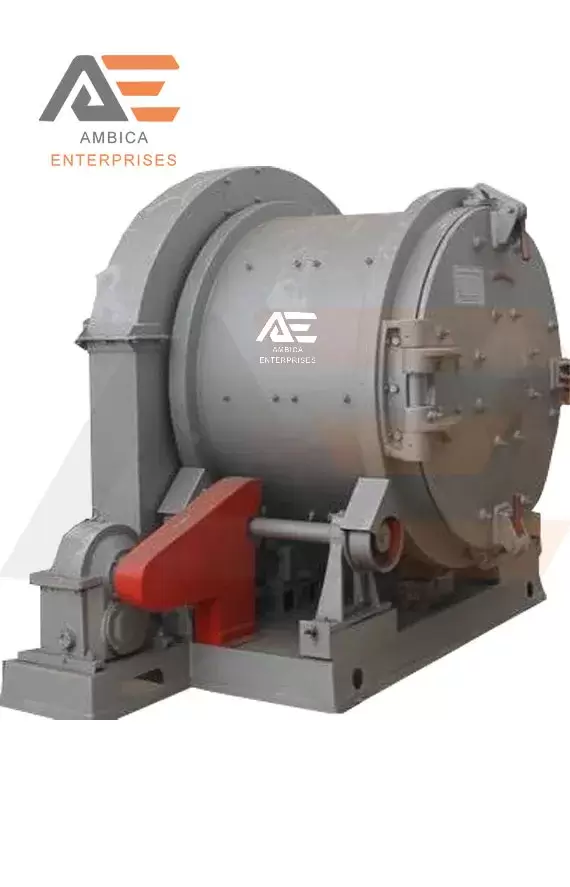

Rotary Barrel Type Shot Blasting Machine is optimum shot blasting for small, flat, and light components. It is also called a drum type shot blasting machine.

Machine Type Wheel Blasting
Material To Be Blasted Barrel Type
Number Of Doors Single Door
Capacity 0-5 ton/day
Technical Data

Specifications of rotary barrel type machine

Key machine parameters to help you evaluate fitment, throughput, and integration with your production line.

Rotary Barrel Type Machine 11 parameters listed
Machine Type Wheel Blasting
Material To Be Blasted Barrel Type
Number Of Doors Single Door
Capacity 0-5 ton/day
Grade Automatic, Semi-Automatic, Manual
Load 100 to 150 kg
Effective Volume 1.5 to 3 cft
Abrasive Blast Cleaning Cycle 15-20 Min. for Cast Iron
Dust Collector Capacity 400 cfm
Power Requirement 5 HP
Usage/Application Desanding and decoring of casting. Blast cleaning small components of stainless steel,brass,bronze
Use Cases

Industrial application of rotary barrel type machine

Typical production environments and component types this machine is engineered to support.

Blast wheels make up the impeller head's straightforward and robust construction.
PLC controls the machine, which makes operating it simple and dependable.
The construction of this equipment is robust.
The equipment operates with flawless performance.
This machine requires incredibly little maintenance.
The machine has a 150 KG load capacity with a 4 MM CFT.
The very effective segregator also safeguards the blast wheel.
Bag dust filters significantly reduce air pollution and increase productivity.
The rubber belt that is resistant to abrasion softens the impact of workpiece collision and reduces noise.
Product Overview

Detailed about rotary barrel type machine

In-depth technical and commercial information about this machine, applications, and operating advantages.

Complete product brief

Rotary Barrel Type Shot Blasting Machine is optimum for shot blasting for small, flat, and light components. It is also called a drum type shot blasting machine. It is probably the smallest batch cleaning machine in a family of Airless Shot Blasting Machines. drum type shot blasting machine is a smaller version of the thumb last machine. The rotary shot blasting machine is provided to the customer with a control panel and electronic timer as a standard supply policy. Shot blasting machine is suitable for small and moderate job shops, foundries & forging units. We are the best shot blasting machine manufacturer in India at a low price for sale.

Features of Rotary Barrel Type Blasting Machine

The Rotary Barrel Shot Blasting Machine is designed to clean small and medium-sized companies with shot blasting at the lowest possible cost.

  • Capacity: 100/150 kgs load 1.5/3 ft effective volume. The cleaning rate depends on the nature of the job, the degree of surface preparation needed, and the type of abrasive utilized.
  • The blast wheel on a rotary shot blast machine is the most effective abrasive media throwing device available, capable of projecting the maximum amount of abrasive per horsepower.
  • The low maintenance cost of rotary shot blast machine: normal valve seats
  • Design of rotary shot blasting machine: Due to the tumbling action of the barrel and slow velocity rotation of the barrel, the safety of delicate casting is preserved.
  • Controls: The machine's controls are all in one single location. There are all of the necessary safety features included.
  • The rotary shot blast machine's timer is as follows: The machine's blasting cycle can be pre-programmed using the Electronic Timer.

Specification of Rotary Barrel Shot Blasting Machine

Description Model RBF-1 Model RBF-2
Flow Rate of Wheel (Kg./Hr.) 1135 6000
Size of Barrel (in mm) 575 x 625 L 900 x 950 L
Barrel Capacity (Kg.) 100 150
Barrel Effective Volume (cft) 1.5 3
Barrel RPM 5-7 5-7
Loading Height (mm) 370 370
Type of Dust Collector Fabric Bag Fabric Bag
Dust Collector Capacity (cfm) 400 1200
Hp of Dust Collector 1 3
Total Power Requirement (HP) 5 15
Initial Charge of Abrasive (Kg.) 35 200
Abrasive Blast Cleaning Cycle 15-20 Min. for Cast Iron 15-20 Min. for Cast Iron
Dimension: Rotary shot blast machine with Dust Collector
Length(mm) 2100 2800
Width(mm) 1700 2850
Height(mm) 2100 3200
Dimension of Dust Collector
Length(mm) 900 800
Width(mm) 700 1200
Height(mm) 2100 2400
Floor Space required for rotary shot blast machine with Dust Collector
Length(mm) 3400 2600
Width(mm) 2500 3800

Rotary Barrel Type Machine price in India

Rotary Barrel Type Machine price in India. Drum type shot blasting machine or Rotary barrel shot blasting machine price is low as compare to tumblast shot blasting machine. Ambica Enterprises is Manufacturer, Supplier & Exporter of Drum type shot blasting machine, Sand Blasting Machine, Shot Blasting Machine, Grit Blasting Machine, thermal Spray Gun, Metalizing gun, zinc spray gun, arc spray gun of all cities in India as Delhi, Mumbai, Chennai, Kolkatta, Faridabad, Gurgaon, Rajkot, Surat, Vadodra, Pune.

The Ambica Advantage

Why Buyers Choose Us

End-to-end support from machine selection to commissioning and after-sales service.

Custom Engineering

Configurations tailored to your component size, material, and surface finish targets.

Quality Tested

Pre-dispatch performance checks for blasting efficiency, safety, and reliability.

Export Ready

Documentation and logistics support for domestic and international shipments.

Dedicated Support

Technical guidance for installation, operation, spares, and maintenance.

FAQs

Frequently Asked Questions

Answers about this machine, installation, and support.

Rotary Barrel Type Machine is engineered for As per client requirement, Made in India, Ambica Enterprises, 15-20 Days within airless workflows. It helps remove scale, rust, and contaminants while improving surface profile for coating or further processing. Ambica configures chamber size, abrasive system, and recovery based on your component geometry and daily output.

The typical price range for Rotary Barrel Type Machine is 4Lakh - 20Lakh. Final quotation depends on machine size, automation level, dust collector capacity, and optional accessories. Share your component dimensions and production target to receive an engineering-led estimate with scope clarity.

Yes. Ambica can tailor Rotary Barrel Type Machine for your material type, part size, loading method, and finish requirement. Customization may include table or hanger design, blast wheel or nozzle layout, abrasive recovery, and electrical controls. Our team reviews your sample parts and cycle time before recommending the right build.

Installation planning, foundation guidance, and commissioning support are available for Rotary Barrel Type Machine. We assist with alignment, trial runs, operator orientation, and basic troubleshooting so production can start safely. Remote and on-site support options can be discussed at the time of order confirmation.

After-sales support for Rotary Barrel Type Machine includes spare parts guidance, wear-part replacement schedules, and technical assistance for performance optimization. Our service team helps with abrasive selection, preventive maintenance, and uptime improvement across the machine lifecycle.
