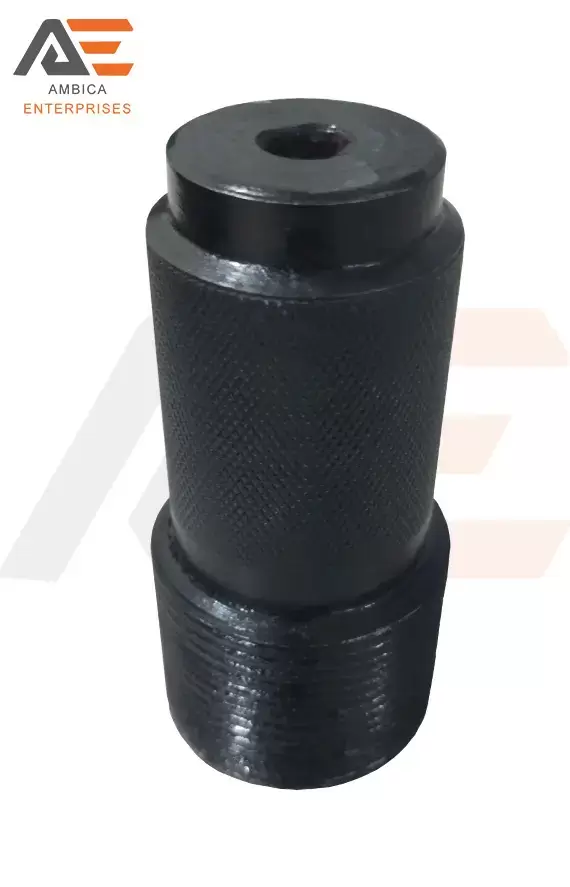

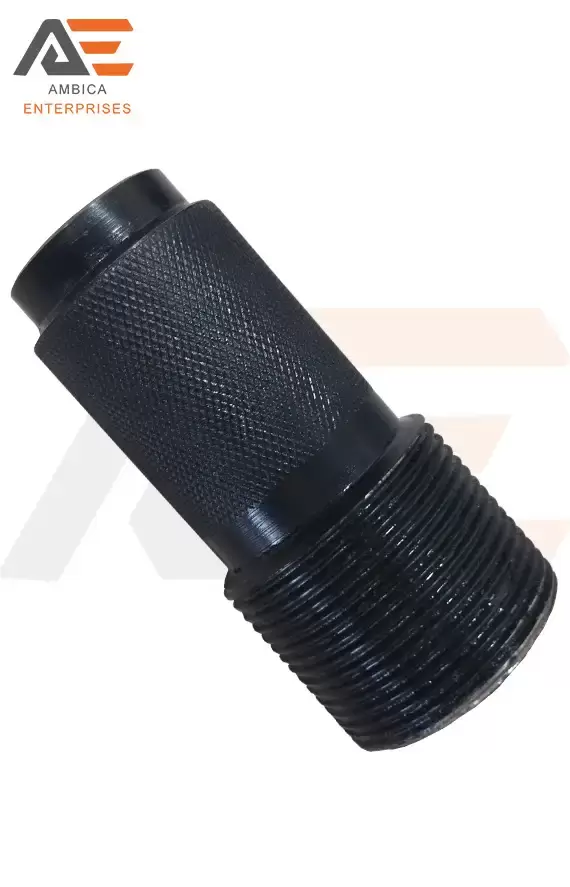

Tungsten Carbide Nozzle
  More Images

Tungsten Carbide Nozzle

Price Range : ₹ 3K - 20K

Ambica Enterprises
Tungsten Carbide Nozzle
5 - 12 mm
Nozzle Holder
Aluminum Nozzle Holder
Electrical Conductive
Maximum Working Temperature
500 °C
Payment Method :
Transportation Mode :
Air Transport
Sea Transport
Land Transport
  •   Tungsten Carbide Nozzles are used for the abrasive media blasting in sand blasting machine and shot blasting machine.
  •   There are numerous applications for tungsten carbide nozzles, including wire guides and other things, in the industries of surface treatment, sandblasting, etc.
Rating & Video

4.5 Star Rating by our Precious Clients

Leading Supplier & Exporter
Leading Supplier & Exporter

Trustseal Verified
Trustseal Verified

ISO Certified
ISO Certified


One of the sandblasting machine's most essential part is Tungsten Carbide Nozzle, blasting nozzles can either increase or decrease production rates. The pattern and velocity of the abrasive blast media exiting the nozzle in blasting are influenced by the taper and length of both the inlet and outlet surfaces. There are a few things to take into account when choosing the right size nozzle. Tungsten Carbide Nozzles come in various sizes, and the amount of air that is available in CFM, the blast machine's capacity, and the size of the blast hose being used are what determine the nozzle size that is needed.

Nozzles for sandblasting have a converging entry and a diverging exit. Depending on the need, tungsten carbide nozzles are offered in a variety of sizes. Used in a shot blasting machine is compressed air. For surface preparation, compressed air is combined with blasting media to create a high-velocity, high-pressure jet.

Types of Abrasive Blasting Nozzles

  1. Venturi Nozzles: Compared to straight bore nozzles, long venturi-style nozzles produce at a rate that is about 40% higher. The venturi nozzle's internally tapered design accelerates and evenly distributes the abrasive throughout the entire blast pattern.

  2. Straight Bore Nozzles: Straight bore nozzles are designed for spot blasting at close range. They work well for cleaning small areas like railings, grillwork, and weldments because they have small blast patterns and little over the blast. We can manufacture any non-standard nozzle that your equipment requires. Please get in touch if you have any special requirements.

  3. Angle Nozzles: These nozzles are great for getting into small spaces, such as inside pipes, behind flanges, or inside bridge lattices. Many operators waste time and are abrasive while they wait for ricochet to finish the job.

  4. Wet Blast Nozzles: Wet blasting nozzles come in a variety of sizes with either tungsten carbide or boron carbide liners and either metric or American threads. These nozzles can all be used as wet or dry blast nozzles and all use a standard 1" I.D. blast hose.

  5. XL Performance: The blaster can stand farther away from the surface being blasted thanks to these extra-long nozzles' ability to accelerate media particles over a longer distance. They also produce a larger blast pattern and more material at a faster rate.

Features of Tungsten Carbide Nozzle

  • Ultra Wear Resistant: Because of tungsten carbide's high hardness, extrusion will be easy. The nozzle diameter and flat will maintain the same dimensions thanks to its unmatched wear resistance, as will your printed parts.

  • Low Pushing Force: The high thermal conductivity of the nozzle tip and body will transfer all the necessary heat to keep the extrusion chamber at a constant temperature. For a constant shear rate, viscosity is strongly influenced by plastic temperature. The results will be excellent and stable because the flow pressure will be constant. The simplicity of pushing the filament will provide an additional safety margin for your extruder.

  • Faster Speed: The printing speed can be increased even further without compromising the quality because of the high thermal performance of the nozzle as a whole. The manufacturing method's special shape inside the nozzle enhances flow where the diameter is reduced, enabling a higher flow rate.

  • Low Friction: Electroless nickel plating has been applied to the entire nozzle to increase its slickness. Plastic won't adhere to the nozzle; it will slide over it. Cleaner parts and fewer dragging issues are the outcomes.

Sand Blasting Nozzles Suppliers

As one of the top Sand Blasting Nozzle Suppliers, we provide a selection of sand-blasting nozzles for sale at competitive prices. The type and material of the nozzle determine how much a sand-blasting nozzle costs. The leading manufacturer and supplier of sand blasting machine, grit blasting machine, thermal spray gun, and metalizing gun are Ambica Enterprises.

To meet the needs of our customers, all of these Tungsten Carbide & Boron Carbide Nozzle are offered in a variety of sizes, shapes, grades, and specifications. Additionally, we offer shot blasting cabinet to clients in India and other nations. Our success has been largely attributed to a laser-like focus on innovation and a profound understanding of our client's needs. When it comes to the caliber of our services, we never compromise.


Frequently Asked Questions (FAQ's)

Types of tungsten carbide nozzle are TC Long Venturi Nozzle, Straight Bore Nozzle, Angle Nozzle, and XL Performance nozzle.
What is the ideal nozzle pressure for dry blasting?
100 psi. A minimum of *100 psi should be set as the blast nozzle pressure. Every 1 psi below 100 results in a 1.5% reduction in blasting efficiency.
How can I choose the correct blast nozzle?
After you understand how the size of your compressor affects production capabilities, you should consider nozzle size. If you use a nozzle with a small bore, you will be wasting some blasting capacity. If you're too bored, you won't be able to blast productively.
