Pressure Blasting Cabinet
  More Images

Pressure Blasting Cabinet

Price Range : ₹ 1.20Lakh - 5Lakh

Cleaning rate
10 sq. mtrs/ hr
Motor Power
1.5 Hp
Machine Type
Automatic / Manual
Rust Removal/ Surface Preparation
25 CFM at 80 PSI
110 Volt
60 HZ
Payment Method :
Transportation Mode :
Air Transport
Sea Transport
Land Transport
  •   Remove rust, mill scale, heat scale and carbon buildup from metals
  •   Strip paint, powder coating, plating and anodising from parts for rework
  •   Eliminate burrs, parting lines, flashing and other
  •   Defects from castings and injection-molded parts
  •   Extract residual sand from castings
  •   Sand Removal
  •   Tube Cleaning
  •   Beautify steel, stainless steel, aluminum, brass and other metals with a matte finish
  •   Etch artwork and lettering into glass, stone, plastics, metal and other material
  •   Clean release agents and material buildup from molds
Rating & Video

4.5 Star Rating by our Precious Clients

Leading Supplier & Exporter
Leading Supplier & Exporter

Trustseal Verified
Trustseal Verified

ISO Certified
ISO Certified

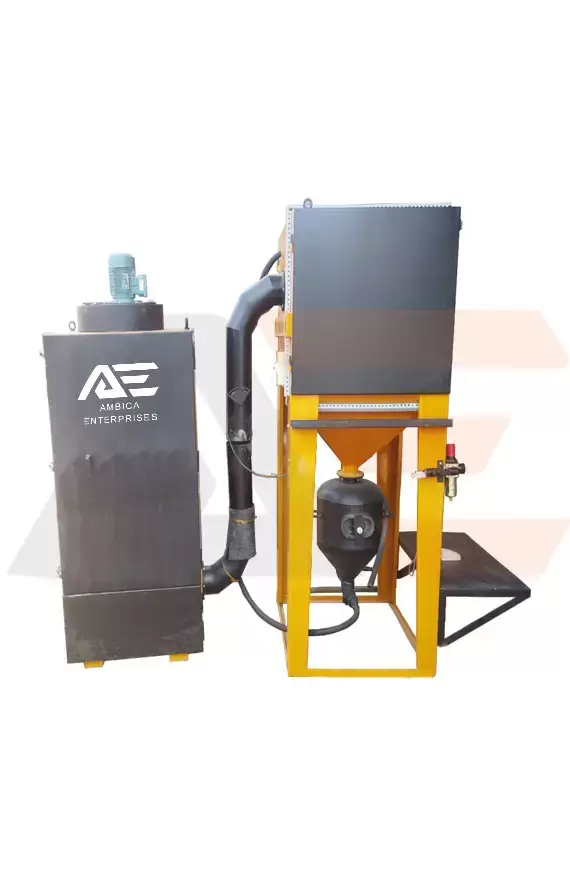

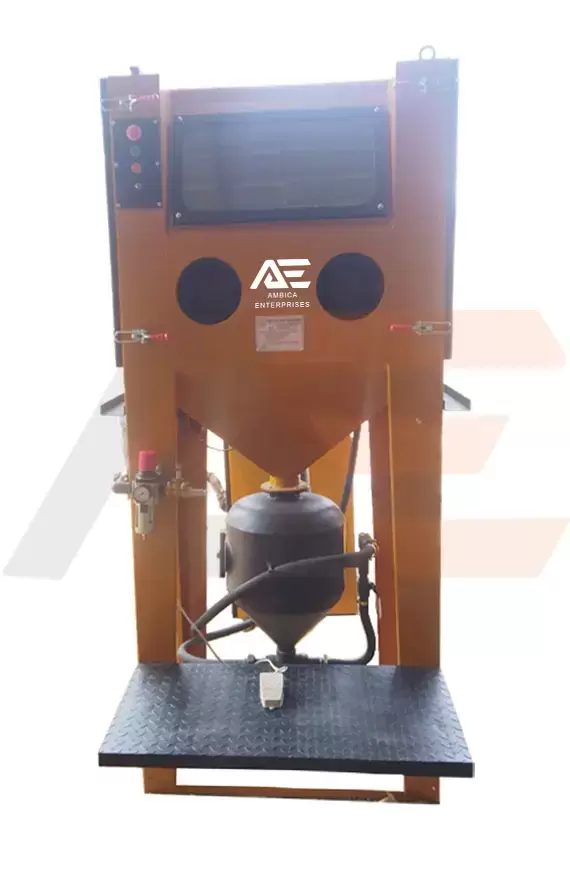

Pressure Blaster Cabinet

Pressure Blasting Cabinets works on the Direct Pressure principle of blasting. It uses a pressurized vessel or “blast pot” that holds the abrasive media. In a pressure blast cabinet, the air pressure in the vessel and is maintained to be the same. This means that there is no pressure differential between the blast pot and the blast line this allows the abrasive media to meter into the airstream at the blast pot and then transfer the length of the blast hose and pipe out to the nozzle. Pressure abrasive blasting cabinets equipment has a single hose running to the sand blasting nozzle. Designed specifically for high throughput and demanding applications. It provides advanced features to ensure efficient operation or working and maximum operator comfort while using Pressure Blasting Cabinet.

Process of Pressure Blasting Cabinets

  • High production – By far the greatest benefit to a pressure-fed shot blasting cabinet is that it is 3 – 4 times as fast in cleaning a product surface.
  • Better cleaning ability.
  • It can be used with metallic media.
  • Heavy-duty cast-iron media regulator for consistent flow without clogging.

Specifications of Pressure Blasting Cabinet :


Height 600mm
Width 600mm
Depth 600mm

Door Opening

Height 500mm
Width 500mm

Overall Dimensions

height 1660mm
width 800mm
depth 1500mm

Dust Collector(Fabric Bag Type Manual Shaking)

Fan Motor 0.5h.p
Fan capacity 200c.f.m
Filter cloth Area 1.0 sq. mt.
Boron carbide Nozzle Short  6mm
Pressure gauge, air regulator &
Moisture separator fitted
one no. each
Footswitch & door limit switch provided for safety interlocking
Compressed air required at 80 PSI
(for blasting machine only)
55 c.f.m
Abrasive storage capacity 28(1)ltrs. (CFT)
Abrasive feed  Direct pressure
Recommended Abrasive Size 30 mesh to 100 mesh

Our pressure blasting cabinets provide the cleaning efficiency of an outdoor portable blaster contained within the confines of a bead blasting cabinet. Pressure blasting Cabinet Price in India depends on work-piece size, If the work-piece size is small then need a Pressure small blasting cabinet. If the work-piece size will large then sand blasting cabinets size will be large, so the cost will depend on the size of the blast cabinet. Pressure blasting Cabinet Manufacturer can reduce cost as per component size.

Pressure blasting cabinet price in India

Pressure blasting cabinet price in India. We manufacturer and supplier of Sand Blasting Machine, Sand Blasting Cabinet, shot blasting machine, grit blasting machine, pressure blasting cabinet, Suction Blasting Cabinet, thermal Spray gun, metalizing gun, flame Spray Gun, zinc spray gun, arc Spray gun at low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur, Vadodra, Surat, Chennai, Kolkata, Assam, Jaipur, Kota, Jodhpur, Udaipur, Gandhinagar, Barmer, and all cities. blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. pressure sandblast cabinet from Ambica Enterprises, automate production sequences and improve the work environment.
