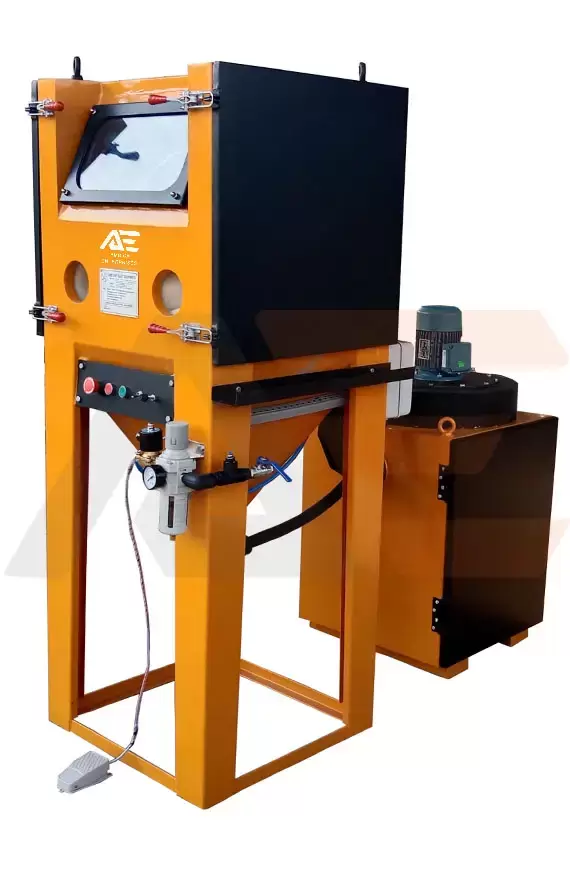

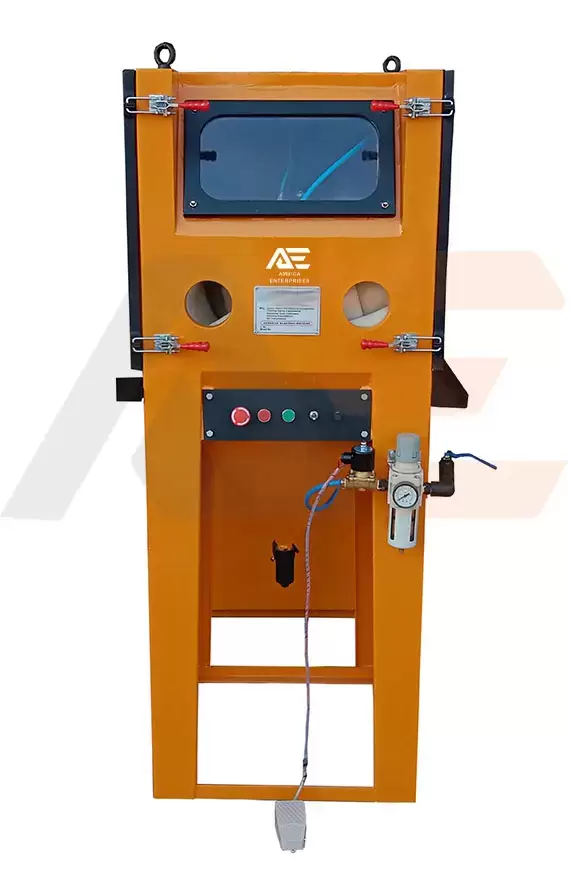

Suction Blasting Cabinet
  More Images

Suction Blasting Cabinet

Price Range : ₹ 70k - 3.5Lakh

Machine Type
suction type
Mild Steel
Machine Type
Automatic, Manual
Cleaning rate
3-5 sqr. mtr/ hr
1 Hp
Shot blasting,surface cleaning,rust removing,deburning
Payment Method :
Transportation Mode :
Air Transport
Sea Transport
Land Transport
  •   Suction Blasting cabinet removing rust, mill scale, heat scale, and carbon buildup from metals.
  •   Suction blaster cabinet removes Strip paint, powder coating, plating, and anodizing components.
  •   Suction Blast cabinet Eliminates burrs, parting lines, flashings, and other defects from castings and auto components.
Rating & Video

4.5 Star Rating by our Precious Clients

Leading Supplier & Exporter
Leading Supplier & Exporter

Trustseal Verified
Trustseal Verified

ISO Certified
ISO Certified


Suction blasting cabinet price in India

Suction blasting cabinet price in India for sale with the best quality. Suction Blasting Cabinet is based on the Injection Suction principle of the blasting system. It works on the Venturi principle to get abrasive media from a non-pressurized storage hopper or tank to the blast gun where it is mixed with the compressed air stream and propelled against the work blasting surface. Suction blast machines or suction blasting cabinets are most easily recognized by having two hoses (one for air and one for abrasive media) running to the blast gun.

When we are working with a suction-blast gun, it is easy to recognize, because it has two pipes also known as hoses attached to it, one providing compressed air and one vacuum pipe (abrasive blasting hose) is delivering media into the gun. Sand blasting nozzles have only one larger hose to deliver a mixture of media particles and compressed air.

Sepecification of Suction blasting cabinet

Description ASB6060 ASB9182 ASB12090
Working chamber(mm) (l)600x(w)600x(h)600 (l)900x(w)910x(h)900 (l)900x(w)1200x(h)900
Door opening(mm) (w)500x(h)500 (w)730x(h)675 (w)800x(h)800
Overall dimension (mm) (l)1500x(w)800x(h)1660 (l)1400x(w)1070x(h)2000 (l)1700x(w)1365x(h)2570
Compressed air required(cfm) 17 20 47
Cleaning area (sq. mt/Hr) 4-7 4-7 15-21
Nozzle (mm) 5/6 5/6 10

Suction blasting cabinet features are as follows:

  • Suction blasting cabinets are of lower cost.
  • A suction blaster has far fewer moving parts and valves than a pressure abrasive blast unit, therefore, more easy maintenance and troubleshooting are possible.
  • Less air and abrasive consumption are there in suction abrasive blast gun as its air demand is governed by the abrasive air jet, which is almost half the size the same of the blast nozzle diameter.

Continuous blasting is possible in a suction blasting cabinet because we need not refill the abrasive media containing hopper again and again in this.

Suction Blasting Cabinet Manufacturer in India

Ambica Enterprises is a leading suction blasting cabinet manufacturer in India & suction blasting cabinet best price in India. we are also a manufacturer, supplier & exporter of all types of shot blasting cabinet, Sand Blasting Machine, Shot Blasting Machine, Grit blasting Machine, sand Blasting Cabinet, Sand Blasting Room, thermal Spray gun, Metalizing gun in Jodhpur, Rajasthan, India at a low price with the best quality for Sale.

Shot blasting Cabinet Price in India is depends on work-piece size, If the work-piece size is small then need a small shot blasting cabinet. If the work-piece size will large then the shot blasting cabinets size will be large, so the cost will depend on the size of the blast cabinet. Shot blasting Cabinet, Shot Blasting Machine Manufacturer can reduce cost as per component size.
