Shot Blasting Cabinet
  More Images

Shot Blasting Cabinet

Price Range : ₹ 70K - 5Lakh

Mild Steel
Machine Type
Pressure, Suction & Wet blast cabinet
Automatic, Semi-Automatic, Manual
Surface Cleaning and grit recovery system
Cleaning rate
3-5 sqr. mtr/ hr
220 V
50 Hz
Automatic, Semi-Automatic, Manual
Power Consumption
0.5 hp to 1.5 hp
Payment Method :
Transportation Mode :
Air Transport
Sea Transport
Land Transport
  •   Metal surfaces should be cleared of scale and corrosion.
  •   surface preparation for all sorts of coating application.
  •   Remove powder coating and paint.
  •   Foundry
  •   Automotive
  •   Manufacturing and Metal industries.
Rating & Video

4.5 Star Rating by our Precious Clients

Leading Supplier & Exporter
Leading Supplier & Exporter

Trustseal Verified
Trustseal Verified

ISO Certified
ISO Certified


Shot Blasting Cabinet is a different type of shot blasting machine which has a cabinet and is a closed form of the machine. In that closed portion blasting of contaminants as well as recycling of shot blasting machine steel shots gets the place. There are many other functions which are included like cleaning, recycling as well as the collection of dust particles too. In this shot blasting cabinets, there is a window from where the operator can see what is going on in the process; there is an opening door from where the blasting material or blasting surface is put inside the cabinet.

Shot Blasting Cabinets are made of low carbon steel with an abrasion-resistant inner shell made of high-strength alloy plates and thick rubber compounds. In regions where the direct high-velocity shot is utilized, alloy steel plates (64 RC hardness) are employed, which have significantly better abrasion resistance than other materials such as manganese steel.

A dust collector attached to the large steel shot blasting cabinet reduces air pressure inside the cabinet, preventing dust from escaping into the workplace. To prevent abrasive leakage, material access ports in the shot blaster's entrance and exit must be designed and covered.

Working Principle of Shot Blasting Cabinet

Shot Blasting Cabinets, which work on the principles of direct pressure blasting, induction suction blasting, and slurry pumping, are manufactured by us. The abrasive media such as copper slag and aluminum oxide and many more are propelled by compressed air, therefore the blasting is done with guns. The entire procedure takes place in sealed rooms to provide safety and dust-free blasting. The cabinets are made of strong gauge mild steel, which can withstand abrasive blasting.

In the shot blasting cabinet, the shot is used as the abrasive media in the blasting process thus to avoid visibility dust collectors are even connected with the shot blast cabinet for sale. In the blast cabinet, the operator does not need any safety gadgets like a safety suit, mask, shot blasting helmet, shoes, blasting gloves, etc. actually the whole process is executed inside the blast cabinet. This makes an eco-friendly, cost-effective, and pollution-free environment. Ambica Enterprises is the best cabinet type shot blasting machine manufacturer, portable shot blasting machine in India at a low price for sale.

Specification of Shot Blasting Cabinet


SB 6060

SB 9182

SB 12090

Working chamber(mm)










Door opening(mm)







Overall dimension (mm)










Compressed air required(cfm)




Cleaning area (sq. mt/Hr)




Shot Blasting Nozzle (mm)




Type of Shot Blasting Cabinet

Types of shot blast cabinets can be listed as follows:

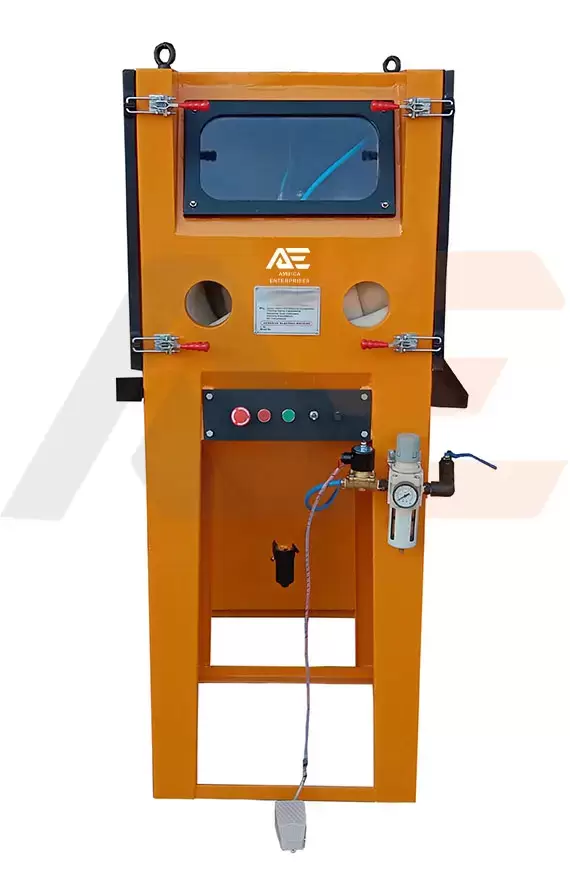

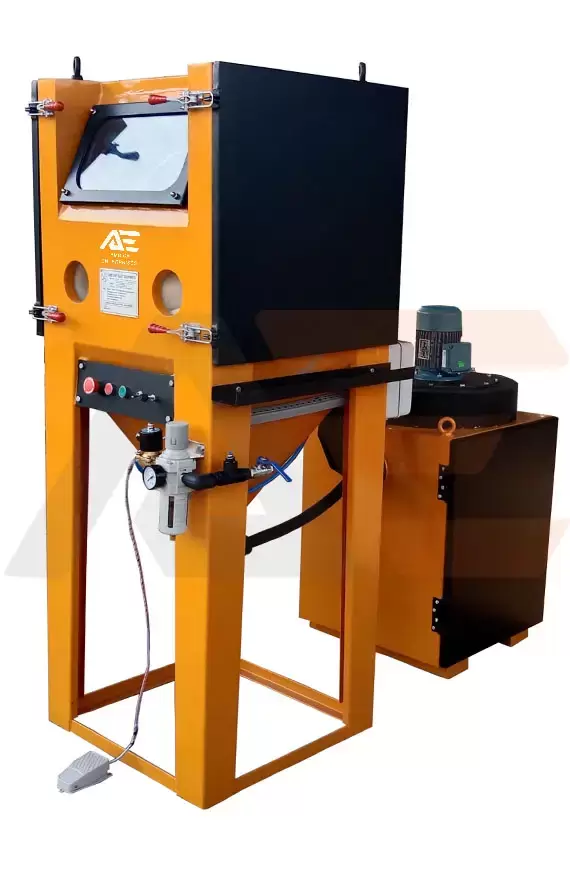

  • Suction Blasting Cabinet

Suction Blasting cabinet is the simplest way to remove corrosion and old paint. The suction shot blasting cabinet is a clean and dust-free blaster. It works on the Induction-Suction abrasive blasting principle. Blasting, deburring, de-scaling, removing thin deposits on soft metal parts, and de-flashing of plastic items and moulded components are the best applications. It's also used to give things a matte look. It is the most straightforward and efficient method for removing rust and old paint. The machine is started by pushing the foot pedal, which extracts air, mixes it with it, and then ejects it via cannon through nozzles.

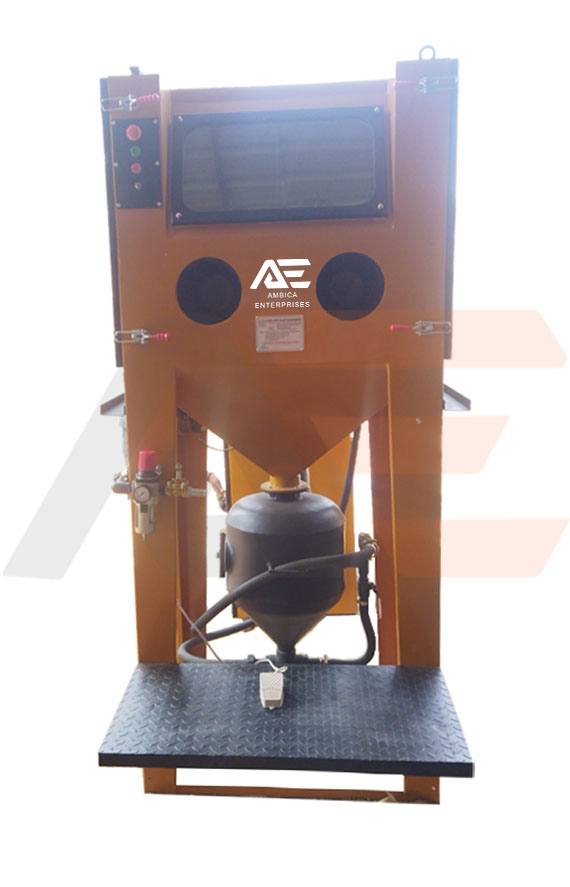

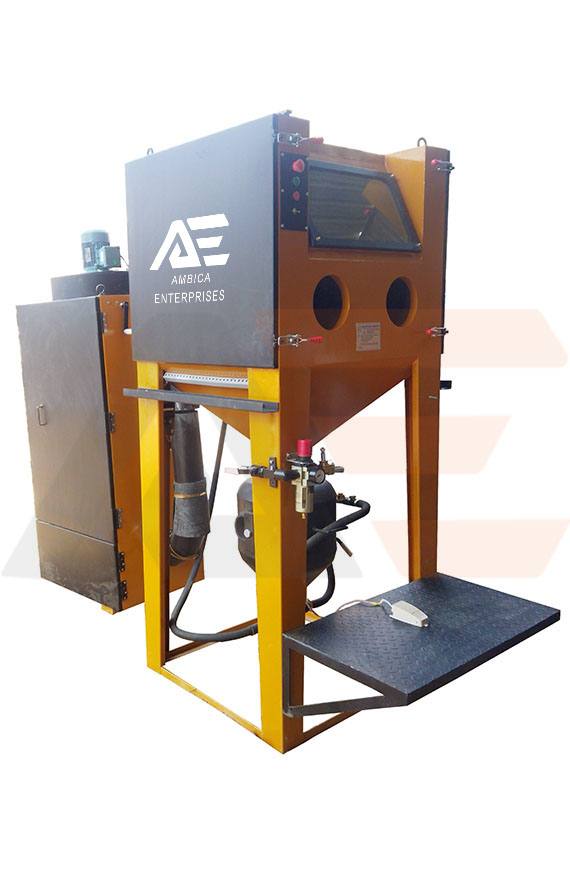

  • Pressure Blasting Cabinet

Pressure Blasting Cabinet is used to pressurize a vessel filled with blast media. The pressure shot blasting cabinet is then forced through a blast nozzle. It works on the basis of direct pressure blasting. The pressure blaster generates a high abrasive velocity, allowing the operation to be completed more quickly. An automatic abrasive replenishing arrangement is built within a pressure tank that is directly mounted below a cabinet's hopper. It is ideal for removing heavy and thick scales, as well as de-burring and de-flashing, with medium and coarse grain.

  • Wet Blasting Cabinet

Wet Blasting Cabinet is the use of abrasive media with compressed air to achieve the desired finish on a chosen surface. Uses a third element – liquid – to enhance the levels of surface finish that can be achieved.

The Wet Blast Cabinet's wet pressure jet can be used for deburring, cleaning, and polishing, and produces results similar to those obtained with abrasive shot blasting media.

One of the most significant advantages of these blasting systems is the shorter time it takes to blast items. Because of the high volume conveying flow, this is the case. Mechanical surface treatment can be considered the Wet Blasting Cabinet. It is not essential to use cleaning chemicals or neutralize them.

Applications of Shot Blasting Cabinet

  • Remove scale and rust from metal surfaces.
  • Preparation of surfaces for the application of all types of coatings.
  • Remove paint and powder coating.
  • Castings and mouldings should be deburred, flashed, and sanded.
  • Stainless steel, aluminum, and other non-ferrous metals can be given ornamental treatments.
  • Glass, stone, and metals are all etched.
  • Mold contamination and releasing agents are removed.
  • Shot blasting cabinet used for the shot peening and alloy wheels.

Shot Blasting Machine for Sale

Shot Blasting Cabinet for sale in India at a low price. We are a leading manufacturer, supplier, and exporter of various types of shot blasting cabinets such as Mini, Micro, Small, Large steel Shot Blasting Cabinets, shot peening cabinet, Pressure Blasting, Wet Blasting, and Suction Blasting Cabinet, Sand Blasting cabinets, shot blasting cabinet for sale in Various Cities of India like- Delhi, Jodhpur, Mumbai, Pune, Rajkot, Kolapur, Bangalore, Pune, Coimbatore, Chennai, etc. And in Foreign countries like- Indonesia, Malaysia, Philippines, South Africa, Spain, United Kingdom, etc. we provide all types of Sand Blasting Machine & Shot Blasting Machine. Cabinet type Shot Blasting Machine Price depends on the type of shot blasting machine.

Frequently Asked Questions (FAQ's)

A thermal spray gun is a collection of coating procedures in which a coating is created by melting finely separated metallic or nonmetallic elements. The coating substance (material) may take the form of molten materials, ceramic rod, wire, or powder (substance).
What is the Thermal Spray Coating?
The ability of the thermal spray coating gun to deposit coatings of metals, cermets, ceramics, and polymers in layers of significant thickness, usually 0.1 to 10mm, for engineering purposes, makes it unique. Almost any substance can be deposited as long as it melts or turns into plastic while spraying. The particles gather as "splats" or "platelets" at the substrate surface, which interlock and pile up to produce the coating.
What is thermal spray material?
In the thermal spray process, materials such as metals, ceramic, cermet, and certain polymeric compounds are fed into a torch where they are heated or melted before being accelerated in a gas stream in the direction of a substrate where they form a splat.
What is Thermal Spray Wire?
Since many years ago, thermal spray wires have been available in solid form. Numerous uses for these spray wires have been effective. We offer a variety of common thermal spray materials, such as: spray wire made from iron, Copper Thermal Spray Wire, Aluminum Thermal Spray Wire, Zinc Thermal Spray Wire, Cobalt-Based Spray Wire, steel thermal spray, Molybdenum Wire & Babbit Wire etc
What are the types of thermal spraying gun?
Types Of Thermal Spray gun Coating Processes You Should Know, HVOF (High Velocity Oxy-Fuel Spraying), Combustion Flame Spraying. Vacuum Plasma Spraying, Two-Wire Electric Arc Spraying, zinc spray gun, Aluminum Spray gun. metalizing gun etc.
What is a metalizing gun?
Using a thermal spray coating technology to coat metal on a product plane is known as a "metalizing gun" in general. The resulting metallic coatings have both ornamental and defensive uses. These metalizing spray gun coatings are also renowned for being incredibly adaptable, efficient, and long-lasting.
