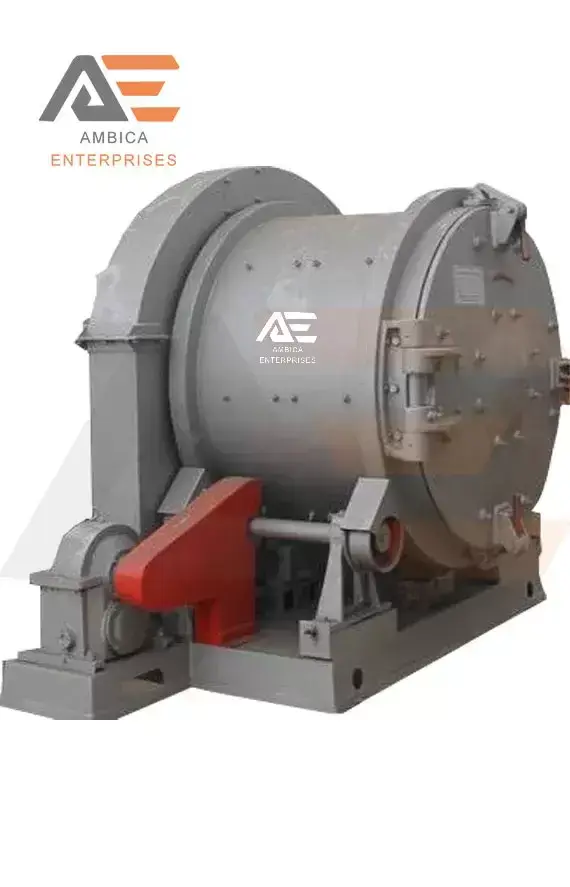

How Does a Rotary Barrel Shot Blasting Machine Work?
A Rotary Barrel Shot Blasting Machine works on a highly efficient industrial principle where batch loading, controlled rotation, and high-speed abrasive blasting combine to clean multiple metal components at the same time.
First, metal parts are loaded into a strong rotating barrel designed for continuous industrial operation. Once the machine starts, the barrel rotates at a controlled speed, causing all components to continuously tumble and move, ensuring every surface gets exposed evenly.
At the same time, high-velocity blast wheels throw steel shots (abrasive media) into the barrel. These shots impact the surface of the components and effectively remove rust, scale, sand, and other surface impurities with precision.
This process ensures uniform cleaning and consistent surface finishing across all parts, making it highly suitable for industries like casting, forging, automotive, and fabrication.
Also known as a Tumblast Shot Blasting Machine, this system is specially designed for high-volume production where quality, speed, and efficiency are equally important.
What is a Rotary Barrel Shot Blasting Machine?
A Rotary Barrel Shot Blasting Machine is an industrial surface cleaning system designed to process multiple components at the same time inside a rotating barrel.
Instead of cleaning parts individually, this machine allows batch processing where:
- Multiple metal components are loaded together
- The barrel rotates continuously
- Steel shots are blasted at high velocity
- Every surface of every part gets cleaned uniformly
It is a high-efficiency bulk cleaning system that replaces manual cleaning with controlled automation.
This makes it ideal for industries where time, consistency, and cost control are important.
Working Principle
Understanding how this machine works helps you understand why it is so effective.
Loading of Components: Raw metal parts are loaded into a specially designed rotating barrel. The barrel is made from wear-resistant material to handle continuous impact.
Controlled Rotation: The barrel starts rotating at a calculated speed. This rotation ensures continuous movement and tumbling of all components inside.
Shot Blasting Action: High-speed blast wheels throw steel shots (abrasive media) into the barrel.
These shots hit the surface of components with high kinetic energy, breaking:
- Rust layers
- Foundry sand
- Heat scale
- Surface contamination
Tumbling Effect : As the barrel rotates, components continuously move, roll, and rub against each other.
- Every angle is exposed
- Uniform cleaning is achieved
- No dead zones remain
Surface Finishing: After continuous blasting, all impurities are removed and a clean, metallic surface is achieved.
- Coating adhesion
- Surface strength
- Product life
Discharge: Clean and finished components are discharged from the machine and sent for next production stages like painting, coating, or assembly.
Major Components of Rotary Barrel Shot Blasting Machine
Every component plays an important role in performance and efficiency.
Rotary Barrel (Core Chamber): This is the main working chamber where components are processed.
Features:
- Heavy-duty steel construction
- Wear-resistant internal lining
- Designed for continuous industrial operation
It ensures durability and stable tumbling action even under heavy load.
Blast Wheel Assembly (Power Unit): This is the heart of the machine.
Function:
- Accelerates steel shots at very high speed
- Directs abrasive flow evenly
- Controls cleaning intensity
Higher quality blast wheels directly improve production speed and cleaning quality.
Abrasive Recycling System: This system ensures continuous reuse of steel shots.
Function:
- Collects used abrasives
- Separates dust and broken particles
- Recycles usable shots back into system
This reduces operational cost and material wastage significantly.
Dust Collection System: A very important safety and environmental unit.
Function:
- Captures fine dust generated during blasting
- Maintains clean air inside working area
- Improves visibility and safety
- Ensures environmental compliance
Without this, the system cannot operate efficiently in industrial environments.
Drive & Rotation System: Controls the movement of the barrel.
Function:
- Ensures smooth and controlled rotation
- Maintains proper tumbling motion
- Prevents imbalance during operation
Types of Rotary Barrel Shot Blasting Machine
Standard Model
- Suitable for general workshop use
- Medium production capacity
- Cost-effective solution for small industries
Industrial Rotary Barrel Shot Blasting Machine
- Heavy-duty construction
- Designed for continuous production
- Used in foundries and large-scale industries
Automatic Rotary Barrel Shot Blasting Machine
- Fully automated operation
- Minimal human involvement
- High production efficiency
- Best for mass manufacturing units
Applications in Industries: This machine is widely used across multiple sectors:
- Casting industries
- Forging units
- Automotive component manufacturing
- Fastener production (nuts, bolts, screws)
- Agricultural machinery parts
- General metal fabrication workshops
Wherever bulk metal cleaning is required, this machine delivers consistent results.
Advantages of Rotary Barrel Shot Blasting Machine
- High Production Efficiency: Multiple parts are cleaned in a single cycle, saving time.
- Uniform Surface Quality: Every component receives equal blasting exposure.
- Reduced Labor Requirement: Automation reduces manual handling significantly.
- Strong Cleaning Performance: Removes deep rust, scale, and contamination effectively.
- Cost Efficiency: Abrasive recycling reduces operational expenses.
more output, less effort, better quality.
Important Selection Factors
Before purchasing, consider:
- Barrel capacity
- Blast wheel power
- Automation level
- Machine build quality
- Abrasive flow control
- Dust collection system integration
A well-selected machine ensures long-term productivity and low maintenance cost.
Maintenance Guidelines: Regular maintenance ensures smooth operation:
- Inspect barrel liners
- Check blast wheel condition
- Monitor abrasive quality
- Clean dust collection system
- Lubricate moving parts
- Replace worn components timely
Proper maintenance = longer machine life + consistent performance.
Common Operational Issues
- Uneven Cleaning: Cause: improper loading or worn blast wheel
- Low Output Efficiency: Cause: poor abrasive quality or reduced wheel speed
- Excess Dust Formation: Cause: weak or poorly maintained dust collector
- Machine Vibration: Cause: unbalanced load inside barrel
Importance of Manufacturer & Supplier
A machine is only as good as its design and manufacturing quality.
A trusted Rotary Barrel Shot Blasting Machine manufacture ensures:
- Precision engineering
- High-quality raw materials
- Better durability
- Stable performance
A reliable Rotary Barrel Shot Blasting Machine supplier provides:
- Installation support
- Spare parts availability
- Technical assistance
- Custom machine solutions
This directly impacts your production efficiency and long-term cost.
Conclusion
The Rotary Barrel Shot Blasting Machine is a highly efficient and reliable industrial solution designed for bulk cleaning and surface finishing of metal components with precision and consistency.
It eliminates the need for slow and labor-intensive manual cleaning by introducing a fast, automated, and highly consistent blasting process that improves overall production efficiency.
From small workshops to large-scale manufacturing industries, this machine consistently delivers:
- High productivity with batch processing
- Uniform and high-quality surface finishing
- Reduced operational and labor costs
- Strong, reliable performance with long service life
