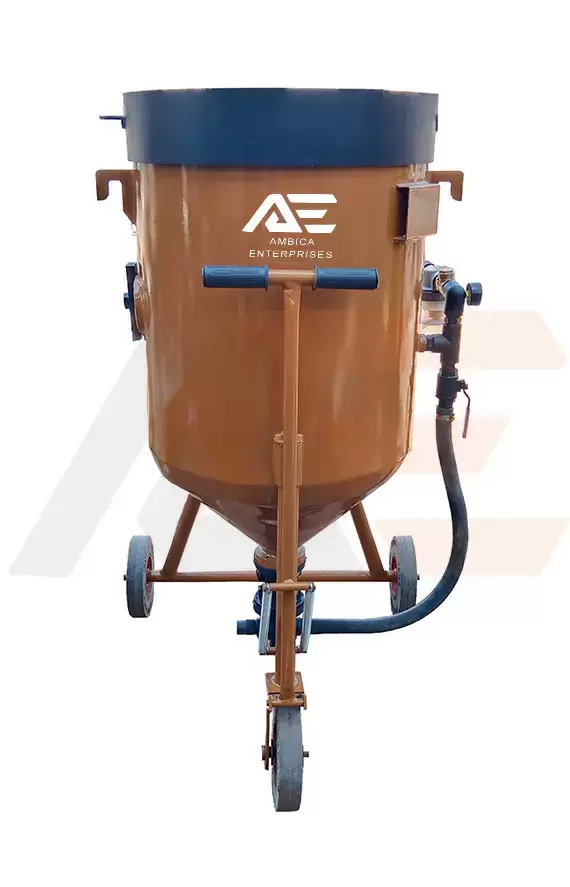

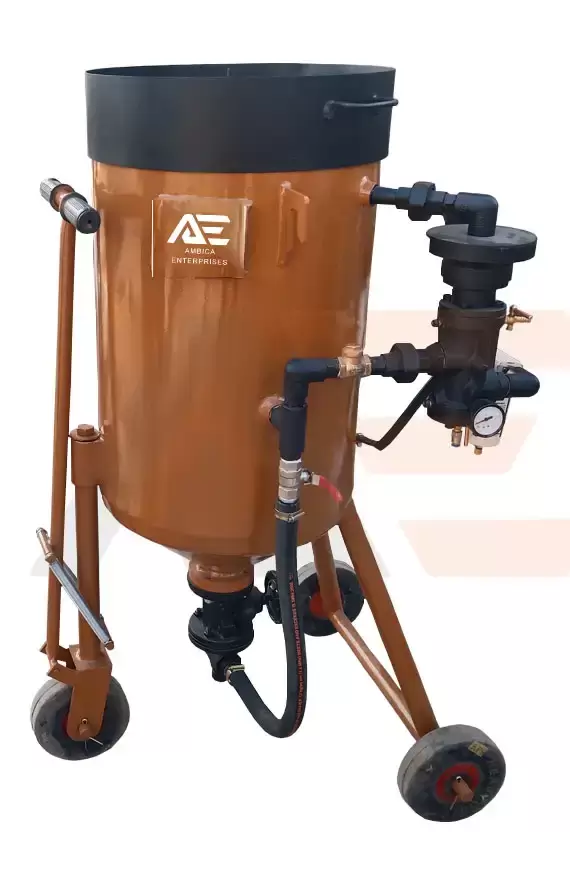

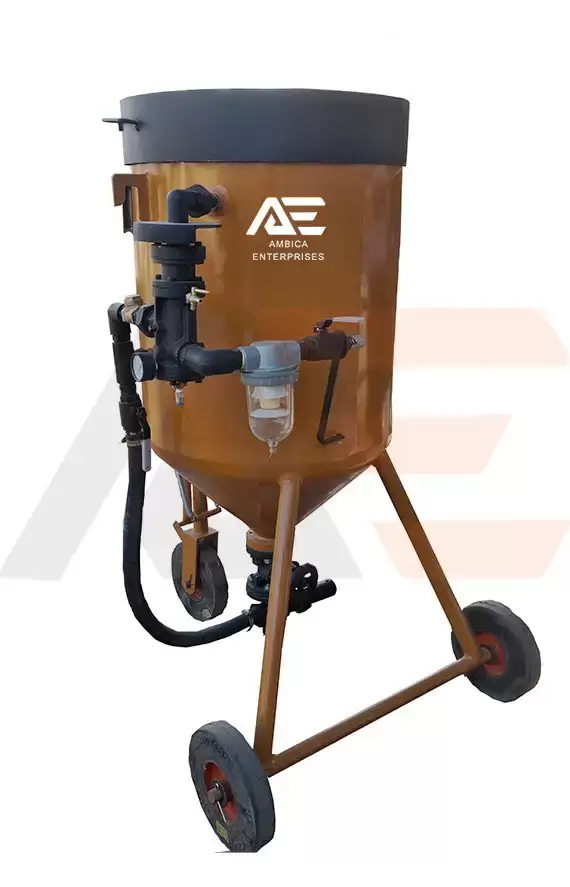

Portable Shot Blasting Machine
  More Images

Portable Shot Blasting Machine

Price Range : ₹ 35k - 1.1Lakh

Specifications
Compressed air required at 80 psi
60 - 217 cfm.
Storage tank capacity
150 - 1000 kg
Approx cleaning rate
4 - 21 Sq. Mtrs./Hr.
Grade
Manual
Std. blast hose length
5 - 10 mtrs.
Types of dust collector
Fabric bag dust collector/ Reverse pulse jet pleated filter dust collector
cleaning of dust bags
motorized shaking\ pulse jet air
Payment Method :
100% T/T NEFT RTGS IMPS
Transportation Mode :
Air Transport
Sea Transport
Land Transport
Applications
  •   For proper bonding with the surface, blast clean the surface of floor tiles, slates, sand stone, and marble chips.
  •   Designing, surface etching, and engraving on various sorts of stones.
  •   The machine's portability allows it to clean large monuments in a short amount of time.
  •   Blasting of large components on the job site, such as massive structures, tanks, pressure vessels, bridges, towers, and pipes.
  •   Forged and die-cast components are descaling, deburring, and de-flashing.
  •   A portable shot blaster for sale is used for Corrosion, rusting, scale formation, welding flux, carbon, and microscopic steel components are all removed.
  •   Steel construction can be de-scaled or de-rusted after welding, allowing for on-site painting with various media depending on the desired finish.
  •   Blasting to remove scale, corrosion, rust, and paint from decks, hulls, and superstructures, among other things.
Rating & Video

4.5 Star Rating by our Precious Clients

Leading Supplier & Exporter
Leading Supplier & Exporter

Trustseal Verified
Trustseal Verified

ISO Certified
ISO Certified

Manufacturer
Manufacturer

The portable shot blasting machine essentially a finishing machine has been strongly utilized on glass, metal, plastic, ceramics, and stone. With a variety of abrasive media, the portable shot blaster is safe, highly productive equipment. Descaling, peening, Deburring, Deflashing, polishing, cleaning, and stress relief are just a few of its uses. The pressure vessels are labeled and tested to 250 psi.

Ambica Enterprises is the Best Shot Blasting Machine Manufacturers and suppliers of portable shot blasting machines, automatic shot blasting machine, airless shot blasting machine, air-operated shot blasting machine in India at a low price for sale.

Portable Shot Blaster Machine

The term "portable shot blasting machine" also refers to a Shot blasting hopper, which are mobile machines that can be moved about depending on its intended use.

Portable Shot Blasting Equipment

portable shot blasting equipment price also depends on the operating method of shot blasting machine. Medium capacity portable shot blaster machines or automatic shot blasting machines have medium-sized blasting pots. portable shot blasting equipment Price depends on the capacity of shot blasting machines, cleaning rate, Operating method. A Portable shot blasting equipment stream can be controlled by the Pinch valve which is the fit bottom of the machine and this valve is open and close by a hand lever.

Portable Shot Blaster Machine Specifications

Model No. SB P7 150 SB P7 300 SB P7 500 SB P7 1000
Abrasive tank capacity:
Metallic 150 Kg. 300 Kg. 500 Kg. 1000 Kg.
Sand 65 Kg. 130 Kg. 230 Kg. 460 Kg.
Volume 42 Ltrs. 85 Ltrs. 142 Ltrs. 284 Ltrs.
Std. Blast Hose Length 5 mtrs. 5 mtrs. 7.5 mtrs. 10 mtrs.
Blast Hose I.D. 19 mm 19 mm 25 mm 32 mm
Blast Nozzle Orifice
[Tungsten Carbide Lined]
5 / 6 mm 6 mm 6 / 8 mm 9.5 mm

Overall Dimensions:
Height 1111 mm 1291 mm 1321 mm 1611 mm
Diameter 361 mm 461 mm 621 mm 761 mm
Weight 95 Kg. 141 Kg. 192 Kg. 246 Kg.
Air Filter &
Pressure Gauge fitted
1No. Each 1No. Each 1No. Each 1No. Each
Automatic Exhaust
Valve fitted
1 No. 1 No. 1 No. 1 No.
Abrasive Control through
Pinch Valve fitted
1 No. 1 No. 1 No. 1 No.
Approx. Cleaning Rate
[Only for guidance]
4-7 Sq. Mtrs./Hr 5-9 Sq. Mtrs./Hr 9-12 Sq. Mtrs./Hr 15-21 Sq. Mtrs./Hr
Compressed air is required
at 80 psi.
60 Cfm. 85 Cfm. 113 Cfm. 217 Cfm.
Recommended
Abrasive Size
25 to 80
Mesh
25 to 80
Mesh
16 to 80
Mesh
16 to 80
Mesh

Portable Shot Blasting Machine Working

The portable shot blasting machine works on the phenomenon of the pressure blasting principle, consisting of a blast generator. When the shot blasting machine is not in use and the blast generator is not under pressure, the abrasives are fed from the top. A vibrating sieve is offered at the top to sieve the abrasive full. If the mushroom valve is removed the abrasive will get transferred to the blast generator for blasting. When compressed air is turned on and the abrasive storage tank is pressurized, the toadstool valve is locked to allow the abrasive to fall freely into the mixing tube. From the mixing tube, the abrasive media such as steel shots is provided away by compressed air to the Sand blasting nozzle for blasting.

Types of Portable Shot Blasting Machine

  • Shot Blasting Machine, SB P7 150
  • Portable Shot Blasting-Machine SB P7 300
  • Portable shot blasting machines, SB P7 500
  • Portable shot blaster machine, SB P7 1000

Features of Portable Shot Blasting Machine

  • High heftiness
  • Designs with customization
  • The metal used is of Superior quality

Benefits of Portable Shot Blasting Machine

  • It helps to detect surface defects
  • Blast pattern accuracy is high
  • Boosts the endurance of future coatings
  • It has a good lifespan

Portable Shot Blasting Machine price in India

Portable Shot Blasting Machine price in India depends on the type and size of portable shot blasting machine in India. We are a leading portable shot blasting machine equipment manufacturer, portable shot blasting equipment supplier, and portable sand blasting machine, portable shot blasting equipment, shot peening machine, portable shot blaster manufacturer in all cities in India. We export portable shot blasting equipment, sand blasting machine, shot blasting nozzles, Operator safety wear, grit blasting machine in Dubai, Oman, Italy, Kenya, Bagdad, Canada.

Frequently Asked Questions (FAQ's)

Abrasive Blasting Machine is a process in which fine particles of abrasive are blasted on a surface of the subject. Blasting is a phenomenal process of cleaning up the surface from the contaminants on it. The high-velocity beam of the blasting machine on the surface. There are different types of blasting machines, like sandblasting machines, shot blasting machines, grit blasting machines, etc.
What is sand blasting?
Sand Blasting is the process of forcibly propelling a stream of abrasive material against a surface under high pressure to smooth a rough surface, roughen a smooth surface and shape a surface, or remove the surface contaminants. Sand used in sandblasting procure lung disease silicosis is caused by extended inhalation of the dust created by sand, other materials are now used in its place.
What is sandblaster?
A sand blaster is a machine that is used for the operation of forcibly propelling a stream of abrasive material against a surface under high pressure to roughen a smooth surface, smooth a rough surface, shape a surface, or remove surface contaminants.
What is the difference between shot blasting and sand blasting?
Sand blasting and shot blasting both are the process which is being utilized in mechanical surface cleaning. Many industries that use metal apply these methods in daily practices for removing corrosion, paint, and other films and preparing the surface for coating. In both methods, cast ironwork is also blasted to remove old paint layers. But the difference between both processes is only for principle and application types.
